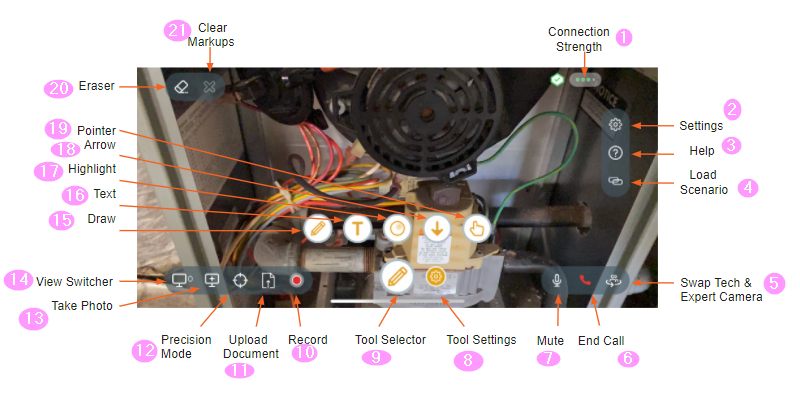

WorkLink Calling: Menu Icons on the Calling View
1. Connection Strength: Indicates the quality of your current connection.
2. Settings: Toggle between Low Bandwidth Mode. When connectivity is poor, use this to switch from live video to high quality still images.
3. Help: Show WorkLink Assist tutorial again.
4. Launch WorkLink Scenario: Load WorkLink Create instructions into the current call.
5. Swap Tech & Expert Camera: Allows swapping of camera between Tech and Expert.
6. End Call: Disconnect/Hang up from the call.
7. Mute Microphone: Allows you to temporarily disable the microphone on your device during a call.
8. Tool Settings: Allows you to select a brush size for line thickness and select a colour for line colour.
9. Tool Selector: Allows you to use any of the annotation tools.
10. Start / Stop Recording: Allows either user to record a call or portion of a call. Tap to start recording while in the call.
11. Upload Document: Allows technicians and experts to share documents or files during a remote assistance call.
12. Precision Mode: Allows you to “pause” or “freeze” your view to a high quality still image.
13. Take Photo / Add View: Allows you to save a photo of your current view of a live call. You can then zoom, pan, and add AR markups which appear on the other users live video.
14. Screen/View Switcher: Allows you to navigate between any screenshots or saved views you have taken during the call, or return to the live video view.
15. Draw: Allows drawing in any size or colour.
16. Text: Adds a text box wherever the user indicates.
17. Highlight: Adds a highlight area wherever the user indicates. Tap the new object to move, scale, and delete.
18. Arrow: Adds a 3D arrow wherever the user indicates. Tap the new object to move, scale and delete.
19. Pointer: Allows you to select objects to move, scale, or delete. Also, touch the screen anywhere and both users can see your live cursor.
20. Eraser: Allows you to interactively remove any drawing in the view.
21. Clear Markups: Removes all content (when nothing is selected).
