Users can now use Work Instruction Scenarios which are stored locally on the device (Offline Published Work Instructions and loaded on a device) without any network or connection to Scope AR CMS.

Note: Please note that Remote Assistance calls are not available in this mode.

Offline Publishing

The author can download the scenario file and side-load on the device. Learn more: Offline Publishing on WorkLink Create.

Loading Work Instructions files on devices

Offline Published Work Instructions can be loaded on the user's device by following ways:

• • Offline Publishing: Side-loading projects on iOS
  • Offline Publishing: Side-loading projects on Android
  • Offline Publishing: Side-loading projects on HoloLens UWP
  • Offline Publishing: Side-loading projects on WSA- Surface

Using Local Work Instructions

To use Local Work Instructions on a device,

• • Launch the WorkLink app
  • From the log-in screen, tap on "Advanced Settings"
  • Tap on "Local Sign-In (Beta)" and save settings.
  • Relaunch the app for settings to take effect.
  • Enter your email and you can access Local Work Instructions. (Your email is used to save session data on your device)



How to access the scenario session data

Scenario session data, including checklist item screenshots, are stored locally on your device. Depending on your device platform, the location will change:

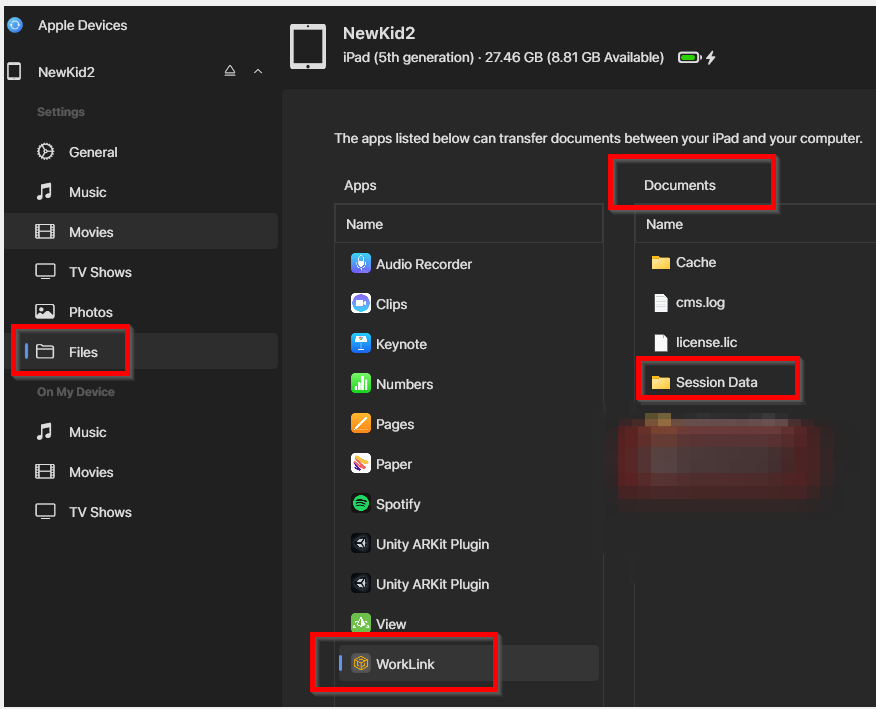

• iOS: Connect your device to a computer. Connect device to iTunes>Click on WorkLink App>WorkLink Documents>Session data

• Android : Under File Manager in the directory Android/data/com.scopear.remotear/files/session data.

• WSA: On the Camera Roll under Session Data/<username>/<scenarioname-timestamp>
• Hololens: In your Device Portal, choose File Explorer (https://docs.microsoft.com/en-us/windows/uwp/debug-test-perf/device-portal#file-explorer)Under User Folders/Local App Data/ScopeAR.RemoteAR_<packageID> (or similar)/LocalState/SessionData

What data is stored on my device?

Scenario session data is stored on the device in four CSV files.

• Step Flow: Captures the order in which the steps were performed during the work instruction and the duration of each step in seconds.
• Step Details: Captures the time spent on each step in seconds and lists the step name
• Checklist Details\Flow: captures the answers that a user-entered into their checklist items with timestamps of when the data was entered
