This is an overview of the Scenario Menu that is available in the WorkLink App when a user is interacting with a 3D work instruction. After a scenario is loaded, click the three-bar button in the upper-left corner of your screen.

NOTE: The menu options available to you primarily depends on how your project is set up on the Authoring platform. In other words, you will only see the options set up for your project. A secondary factor is the device used; menu options available for windows devices are limited.

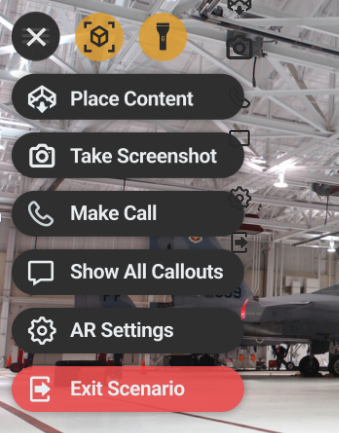

Example 1:

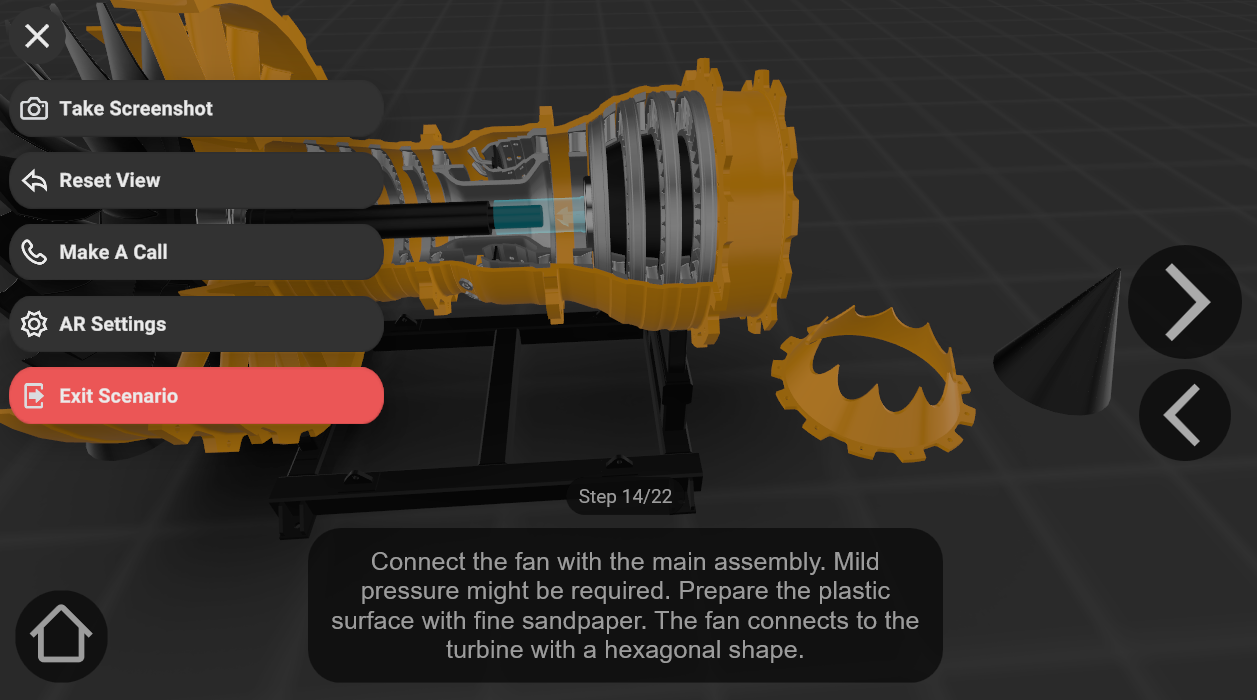

Example 2:



Scenario Menu Options

	Place Content - Allows you to place, reposition or reset the position of the 3D content.
	Take Screenshot - Allows you to capture a screenshot which will exist in the Scope AR CMS.
	Reset View - Allows you to reset the interactive mode camera to its original position.
	Make A Call - Applicable only to licensed Calling users. Allows you to call another licensed user for remote assistance.
	Show All Callouts - Callouts are descriptive text boxes/labels added to 3D objects. Show Callouts allows all callouts in your project to be visible.
	AR Settings - Adjust AR settings such as AR Mode, Overlay Mode, Active Tracking and High Quality Graphics.
	Exit Scenario - Finalize and close the current work session.
	AR Mode - Tap to toggle AR Mode on/off.
	Flashlight - Allows you to turn on and off your camera flashlight, which can be helpful in low light environments.

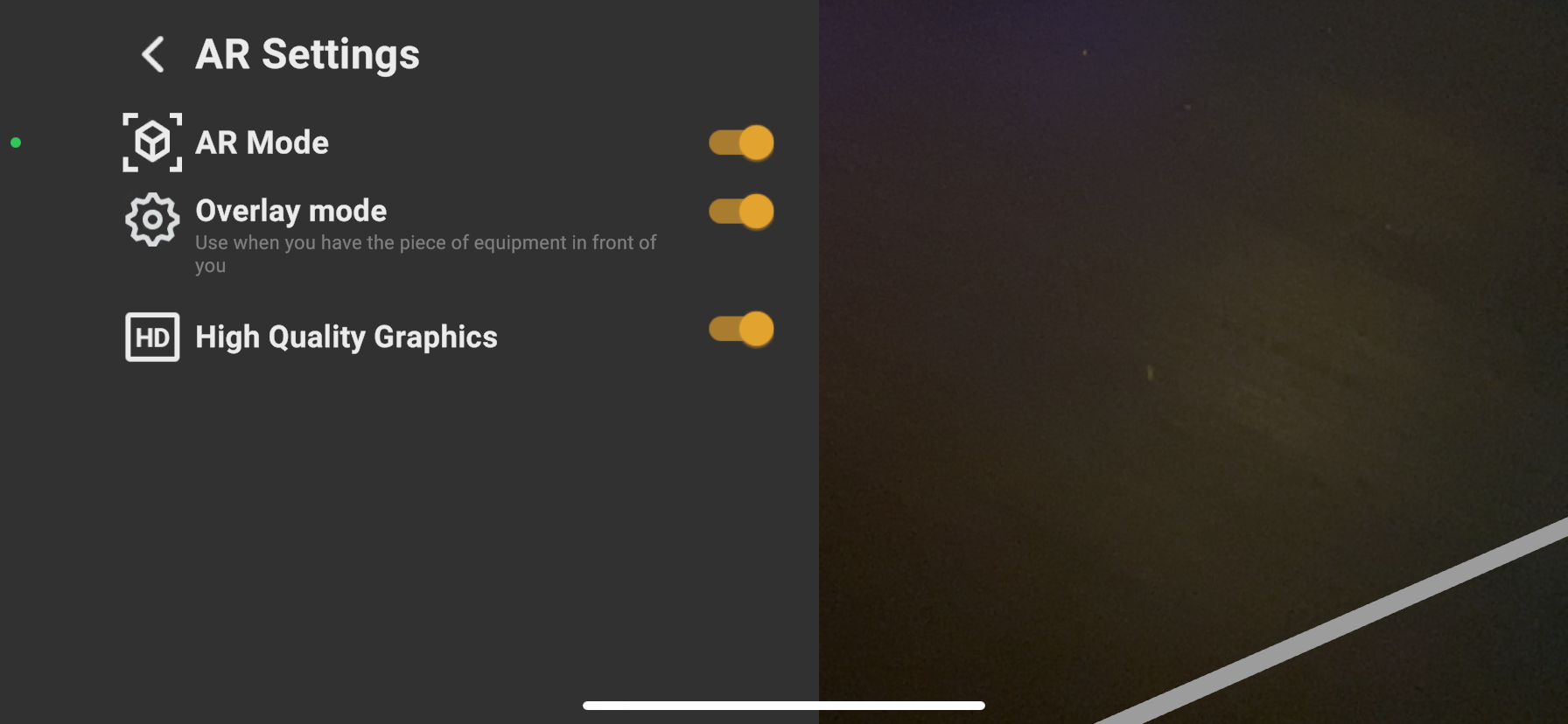

AR Settings



AR Mode On / Off

AR Mode ON - Allows the user to view instructions in the real world and choose whether to overlay the AR content over a piece of equipment or have them stand-alone in the real world without the piece of equipment.

AR Mode OFF (Previously Interactive Mode) - Allows the user to view instructions without the use of the device camera. Content will be displayed in a generic environment and simple gesture controls can be used to zoom, pan and rotate the content.

Learn More: WorkLink Scenarios: Viewing Scenarios in the 3D Viewer

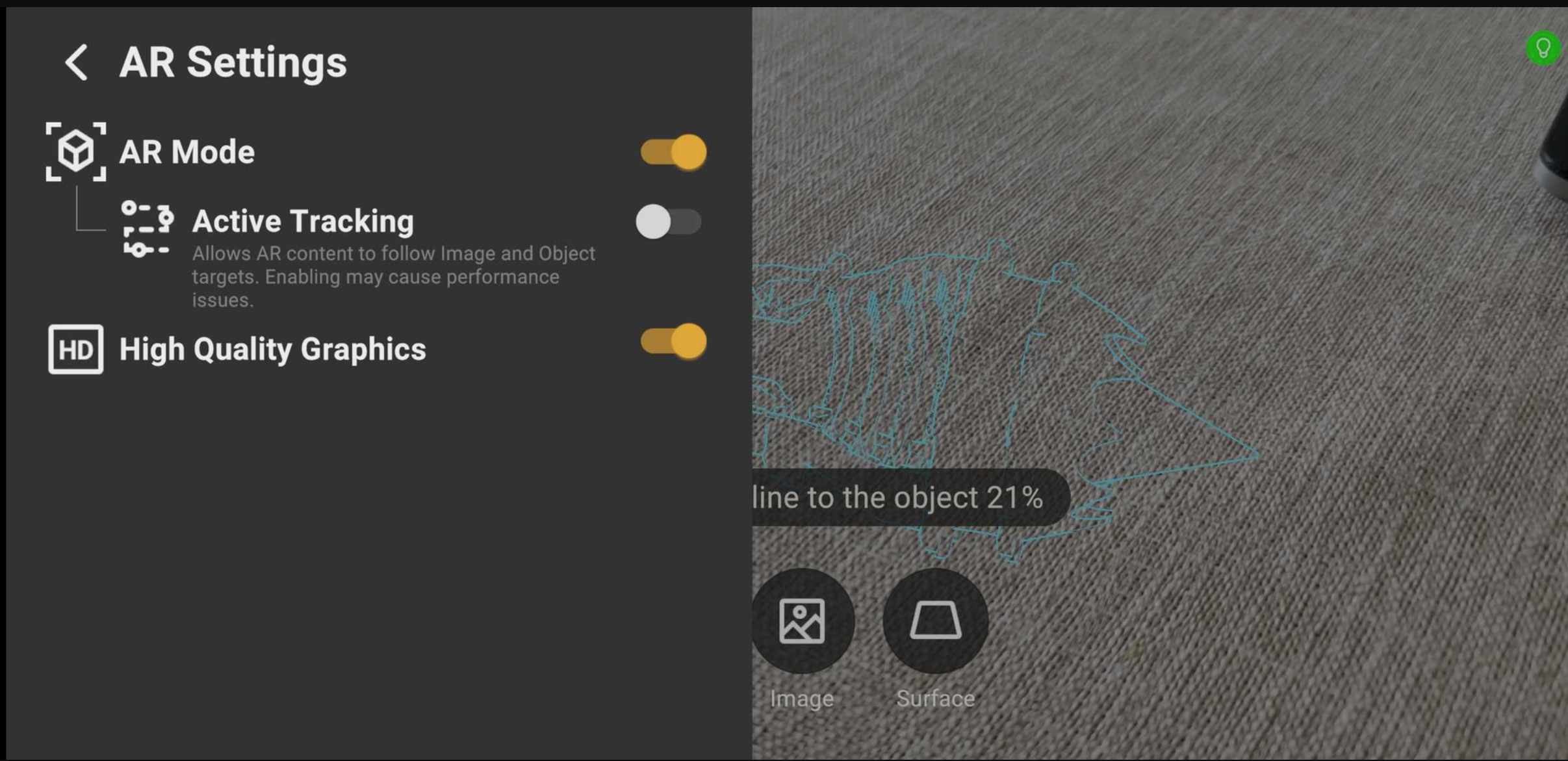

Active Tracking On / Off

Active Tracking mode switches the system from a static placement to a continuous tracking state. It will work on both image and model targets. When Active Tracking is enabled the system will continuously follow the image or model target even if the target is moved. This is best for situations where the tracking target is often moved or rotated from its original position during the instruction.



Overlay Mode On / Off

Overlay Mode ON (Previously Device Mode) - This is used for situations when you have the real equipment in front of you, so the 3D content overlays on top of the equipment.

Overlay Mode OFF (Previously Standalone Mode) -  This is used for situations when you do not have access to the equipment, so the entire piece of equipment in rendered in 3D.



High Quality Graphics On / Off

This setting will turn on Anti Aliasing when on. As this can have a performance impact, this setting is automatically turned off under low fps (frames per second) scenarios.
