WorkLink Create: Window Menu

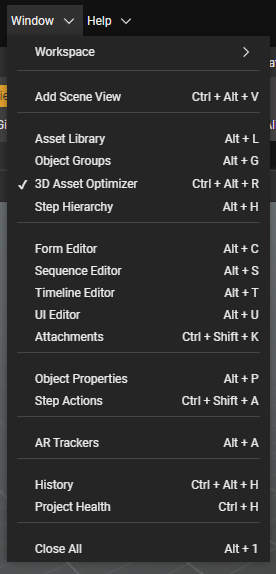

The Window menu opens editor panels you can dock, float, resize, and arrange in the workspace. For docking basics, see WorkLink Create: Workspace Overview and Dockable Windows.
Edit menu (not Window): Preferences (editor defaults) and Project Settings (current project). See WorkLink Create: Preferences Window.
Window menu panels
| Panel | Purpose | Multi monitor support |
|---|---|---|
Asset Library |
Upload, organize, rename, and delete project assets. |
— |
Object Groups |
Group objects for animation and visibility. |
Yes |
3D Asset Optimizer |
CAD conversion and model optimization. (Hidden if CAD is disabled.)
|
Yes |
Step Hierarchy |
Scene tree and parent/child structure per step. |
— |
Form Editor |
Checklist/quiz items on steps. |
— |
Sequence Editor |
Project and sequence structure. |
— |
Timeline Editor |
Per-step 3D animation and timebars. |
— |
UI Editor |
Step UI templates and content. |
— |
Attachments |
Files on a step (images, video, PDF, etc.). |
Yes |
Object Properties |
Selected object components and values. |
— |
Step Actions |
Actions on objects in the current step. |
Yes |
AR Trackers |
Image, surface, and object trackers. |
— |
Search & Replace |
Find and replace across the project. |
Yes |
History |
Undo/redo action list. |
Yes |
Project Health |
Project issues and warnings. |
Yes |
| Panel | Purpose | Multi monitor support | Open from |
|---|---|---|---|
Preferences |
Editor defaults (shortcuts, autosave, etc.). |
Yes |
Edit → Preferences |
Project Settings |
Settings for the current project. |
Yes |
Edit → Project Settings |
Window → WorkLink Labs (when enabled): Step Conditions, Connected Services (IoT), Parts Catalog Editor, AI Companion, and other preview features.
Close All — Closes open panels in the main window.
Checkmarks in the menu show which panels are open. Many panels have keyboard shortcuts; customize them under Edit → Preferences → Keyboard Shortcuts.
Multi monitor support (Phase 1)
These panels can open in a separate browser window for use on another monitor:
Preferences, Project Settings, Project Health, Search & Replace, History, Object Groups, Attachments, Step Actions, Step Conditions, and 3D Asset Optimizer.
Steps
- Open the panel (Window or Edit).
- If it is docked, drag the tab out until it floats.
- Click Open in New Window on the floating panel title bar. (Multiple supported tabs in one float: Open Tab Group in New Window.)
- Move the new browser window to your other monitor.
Restore — Restore to Main Window in the pop-out title bar.
Close pop-out — Closing the browser window closes the panel (it does not return to the main layout). Re-open from the menu if needed.
Pop-out not available when the panel is still docked; it shares a float group with unsupported panels (e.g. Scene View); simulation is playing; or you are in view-only or certain special editor modes.
Other panels (Scene View, Timeline, Sequence Editor, etc.) stay in the main window only.
